T Track Mounts for Photon & Meridian

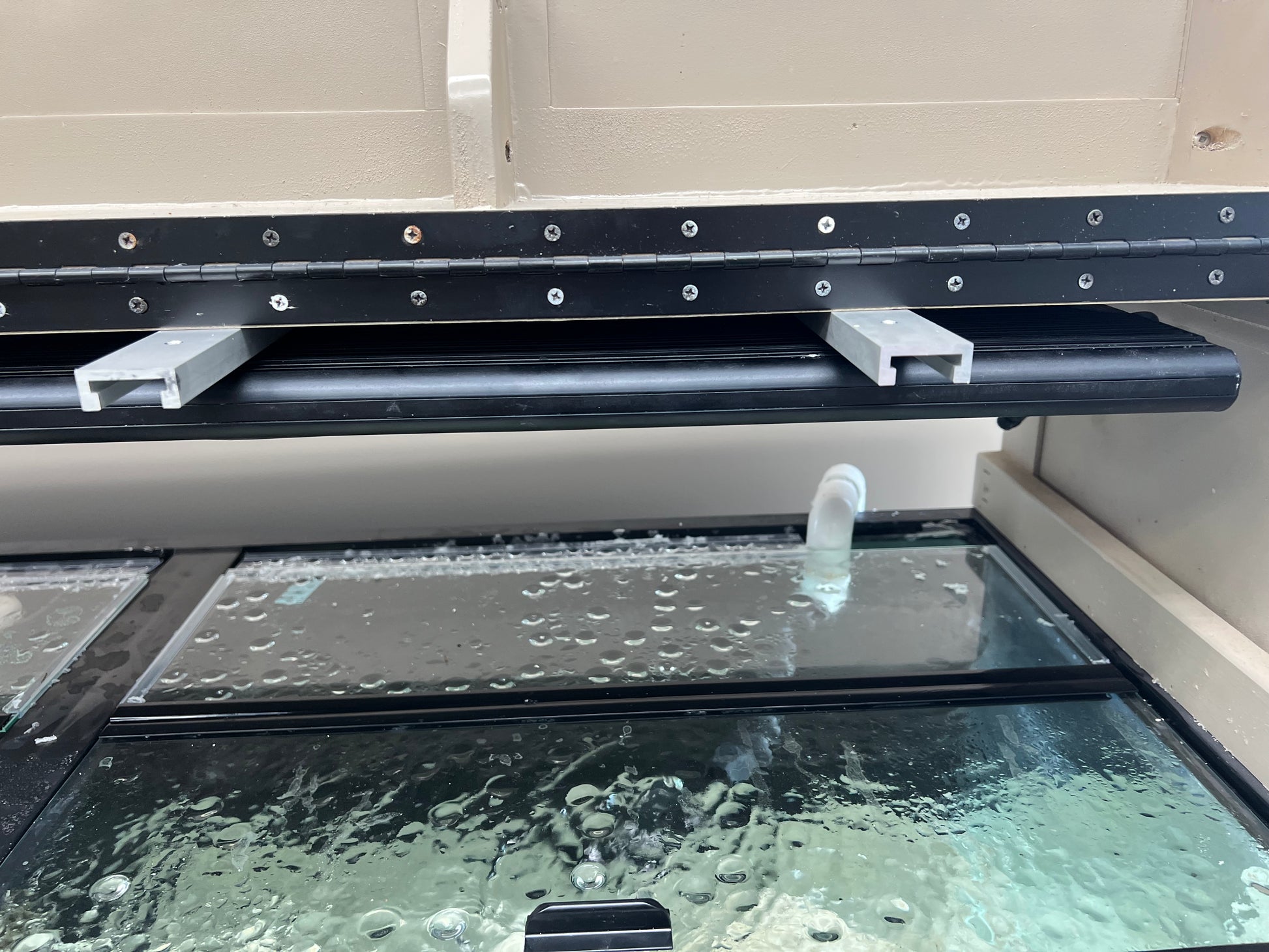

This set of T-Tracks allows for low profile mounting where space is a limiting factor. Each set is designed to be screwed into the top of a wooden canopy or other flat surface. This maximizes available space an increases the mounting height of your lights, while leaving enough space above your light for air circulation.

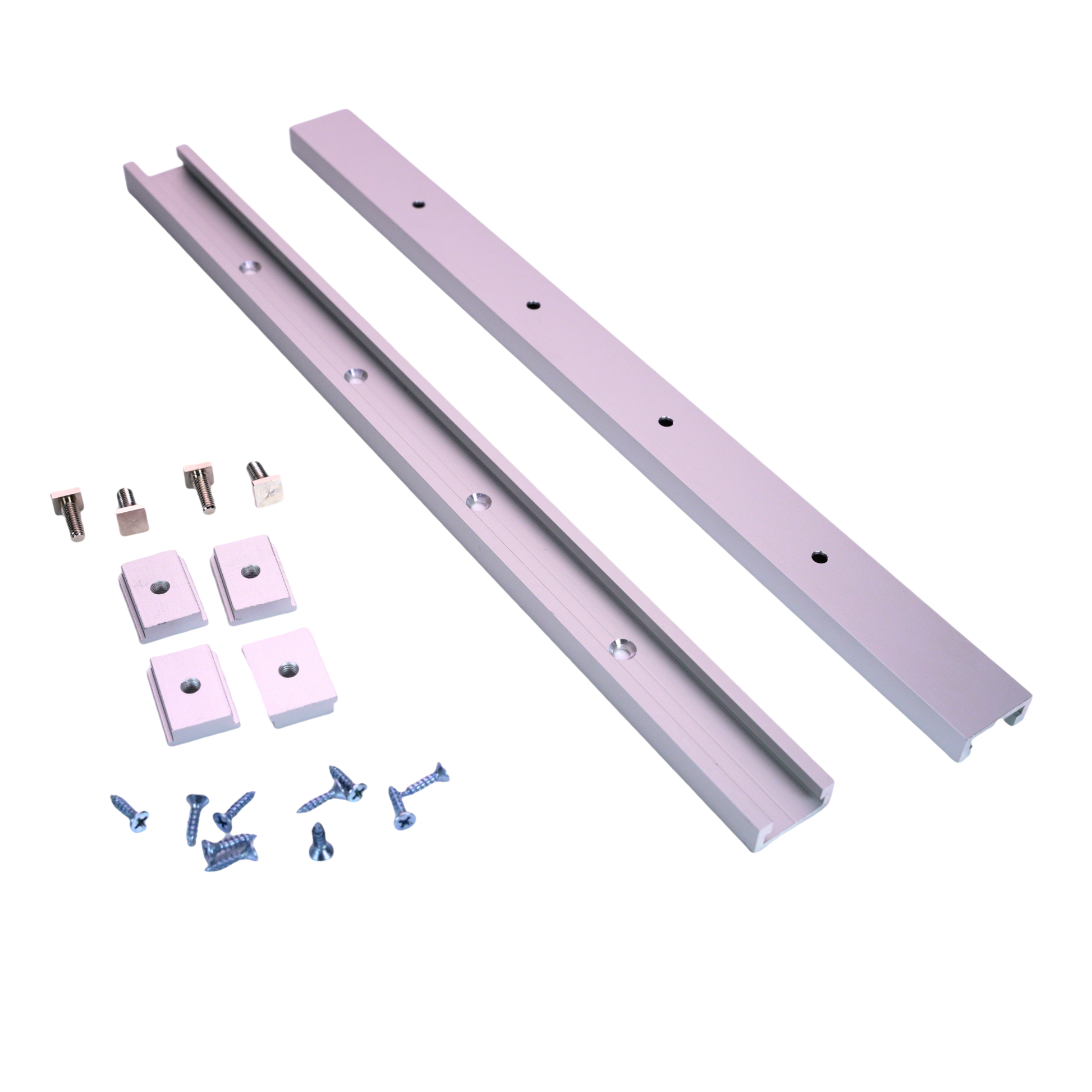

The tracks are available in various lengths for different canopy sizes, and each set includes:

• 2 Silver Anodized Aluminum T-Tracks
• 4 T Track Nuts
• 4 XL Bolts for the Photon/Meridian
• Counter-Sunk Mounting Screws (Quantity Varies based on length of Track)

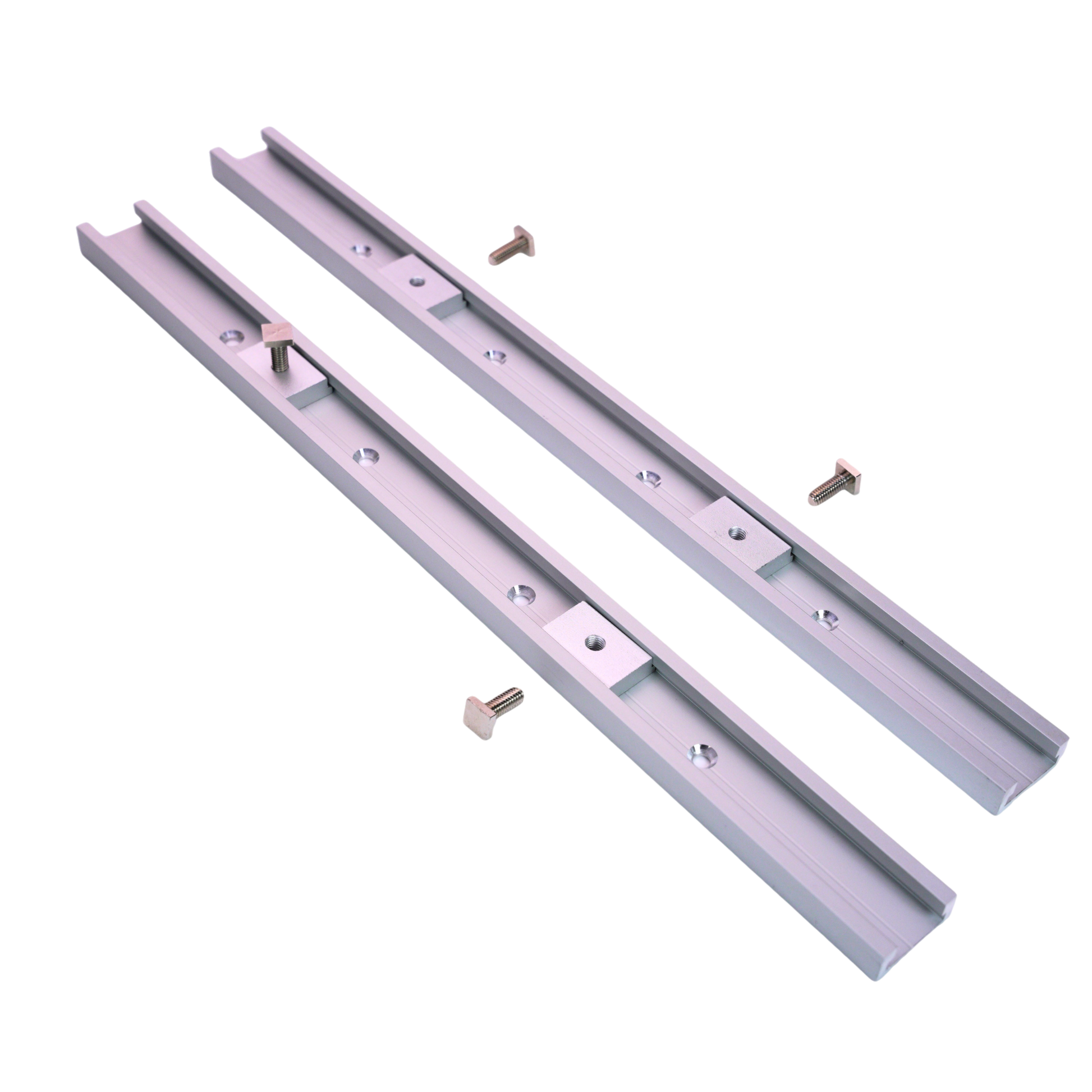

Each Photon or Meridian Requires a minimum of 4 Nut/Bolt combos to mount- and Edge Bars require 2 Nut/Bolt combos for mounting. Both the Meridian and Edge Bars can be mounted together on the same T track set.

For example, to mount a Meridian with 2 edge bars, you will need a T Track set with 4 Nuts/Bolts, plus and additional 4 Nuts/Bolts- 2 per Edge Bar.

The T-Tracks measure 1.2" (30mm) wide x 0.51" (13mm) tall. They are available in 3 lengths: 11.81" (30cm), 15.75" (40cm), and 21.65" (55cm).
