Meridian 45 Edge Bar Bundle

Meridian 45 Edge Bar Bundle

1 total reviews

Regular price $2,207.99
Regular price $2,759.99 Sale price $2,207.99
Sale Sold out
Shipping calculated at checkout.
Meridian Spectrum
Edge Bar Spectrum
View full details

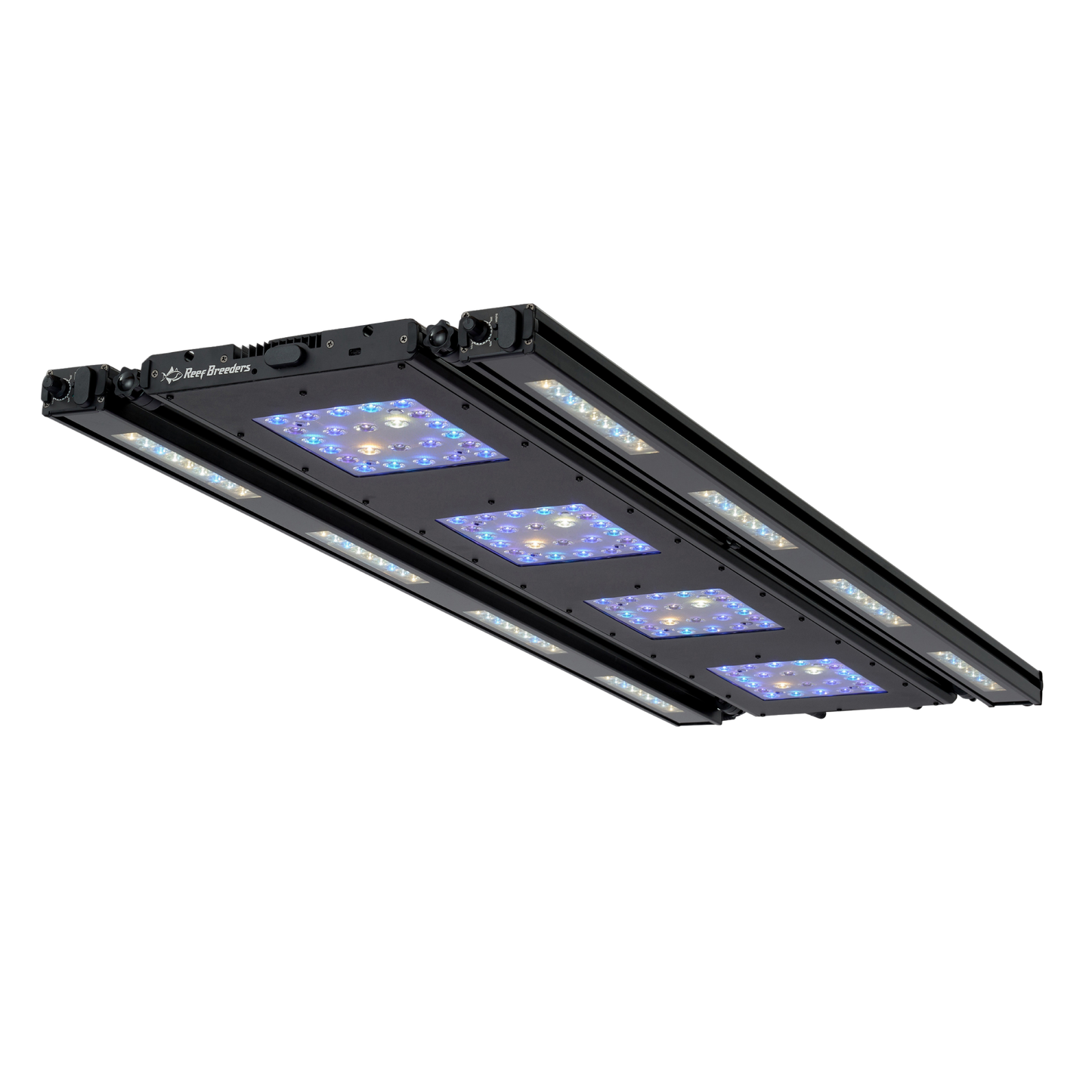

The Meridian 45 paired with two Edge 45 bars, shipped as one complete assembly. Every bracket, cable, and the correctly sized power supply are included, so the whole system runs off a single outlet with nothing left to source separately.

In the box

Bundle components

  • Meridian 45Light only
  • Edge 45 Barx2, spectrum of choice
  • Edge Articulating Mountsx2
  • Daisy Chain CableFor 2 Edge bars
  • Power Supply600 watts

What you notice first

Most people see it before they measure anything. The tank looks clearer, almost as if it has shifted into high definition. Coral edges become more defined, natural textures become visible, and the reef looks sharper from every viewing angle rather than only from straight on. That clarity is the whole reason the Meridian exists: the strongest growth, the strongest color, and the cleanest overall look modern lighting can offer.

What the corals do

Coral results are often dramatic. Colonies grow faster. Long-term slow growers begin putting on new tissue. Frags heal faster. Corals produce colors their keepers had never seen under previous lighting. Growers running the Meridian have reported major improvements within three months, often including completely new growth patterns and color expression.

The spectrum behind it

The Meridian delivers an extended violet range running from 400nm through 440nm, including true 440nm indigo LEDs. Those wavelengths are rarely included in aquarium lighting, and they are the ones tied to rapid tissue recovery, strong color development, and steady growth that limited-spectrum fixtures struggle to match. The scan below shows exactly where that energy sits.

Measured spectral output

Spectrum tuned for coral growth and coloration

No wasted energy. A wider violet and near-UV range than most reef lighting, including true 440nm indigo. High CRI neutral and warm white LEDs provide exceptional color renditioning.

445nm peak output 400–440nm 0 25 50 75 100 400 450 500 550 600 650 700 Wavelength (nm) Relative intensity (% of peak)
Peak445nm
Violet range400–440nm

Spectral scan of the Meridian (Original Layout) with all channels equal.

What the two Edge bars add

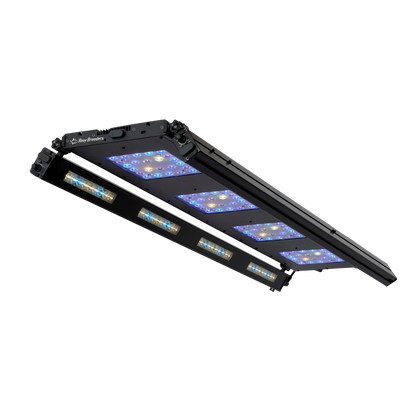

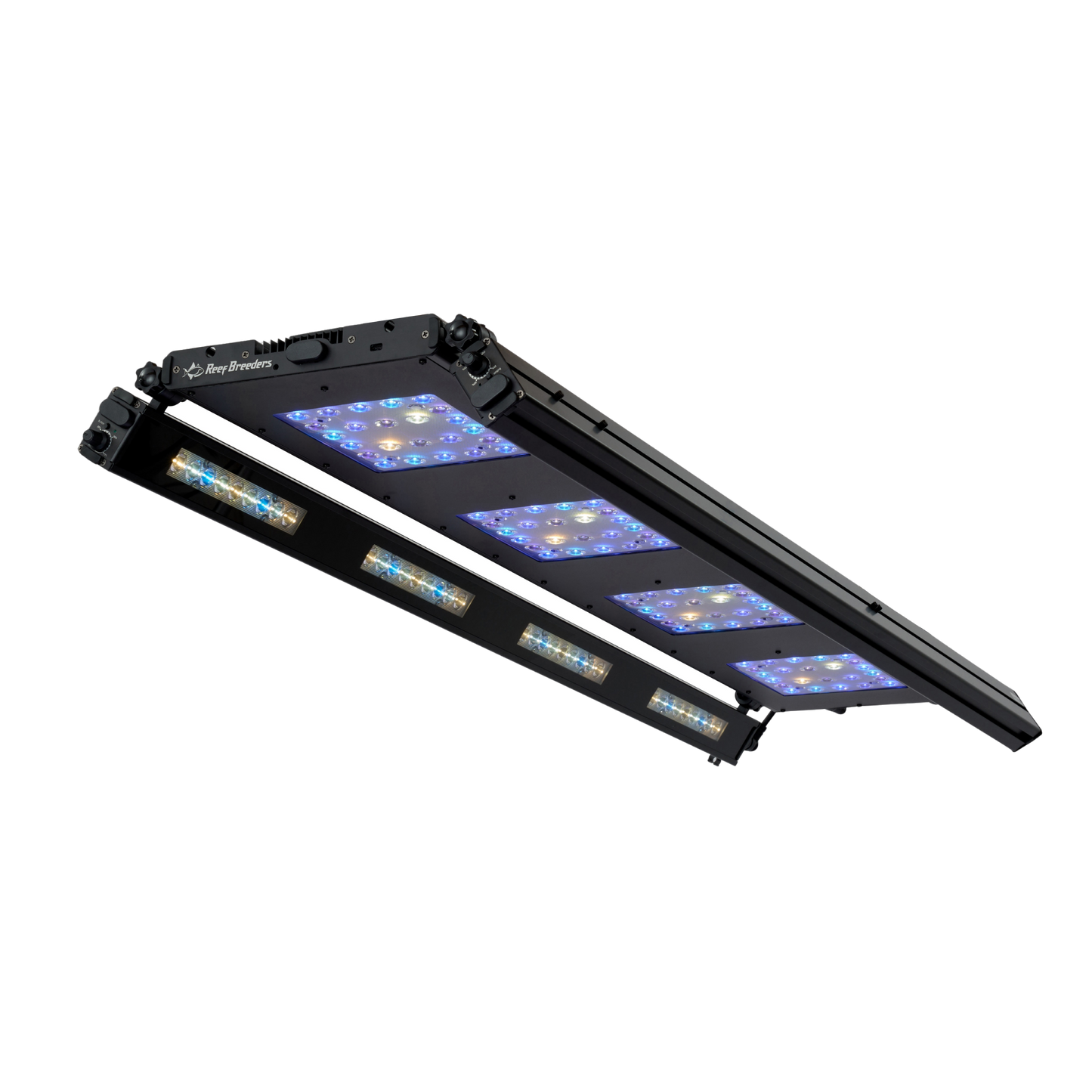

Each Edge bar adds up to six inches of coverage. They mount on the Meridian's front and rear tracks using the included Edge Articulating Mounts, so each bar can be angled in toward the rockwork or out toward the glass rather than sitting fixed.

That puts light on corals from more than one angle, which is what the Edge bars were built to do: healthier, more evenly developed growth instead of light arriving from directly overhead only. The Ocular Holo Matrix optics focus that output rather than scattering it, with enough intensity to reach into tanks thirty inches deep or more.

Choosing your configuration

Two choices at checkout: the Meridian's LED layout, and the spectrum for the Edge bars. Both bars ship in the spectrum you pick, which makes six configurations in total. Here is what each one gives you.

Meridian LED layout · choose one

Original

20K look with all channels equal · high white-to-blue ratio
  • A 20K blue look with all channels equal
  • Four 440nm indigo LEDs on a dedicated control channel, double the two in the 14K layout
  • A high white-to-blue ratio, built on the most popular lighting schedules Photon users created
Original LED layout for the Meridian, showing the arrangement of 450nm, 460 to 465nm, 440nm, 420nm and 400nm LEDs plus 5.5K and 3.5K whites, with a table of channel assignments and quantities.
Original LED layout

Choose this if you want the bluer of the two looks and the full four indigo LEDs.

Also worth a look: Shallow Reef, if you want more white and separate control over warm and cool tone.

Shallow Reef

14K look with all channels equal · double the white LEDs
  • A 14K look with all channels equal
  • Twice the white LEDs of the Original layout, for a more natural shallow-water reef look
  • 3.5K warm whites split onto their own channel, separate from the 5.5K neutral whites
  • Turn the warm whites up for a warmer look, or the cool whites up for a crisp one
Shallow Reef LED layout for the Meridian, showing the doubled white LED count with 3.5K warm and 5.5K neutral whites on separate channels, with a table of channel assignments and quantities.
Shallow Reef LED layout

Choose this if you want the shallow-water look, with control over warm and cool tone.

Also worth a look: Original, if you want the bluer look and the full four indigo LEDs.

Edge bar spectrum · both bars, matched

Every Edge bar runs two independent channels, with the LED cluster below repeating along the length of the bar. Both bars in this bundle ship in the spectrum you select.

Reefer 14K

White, blue, and UV
  • A balanced spectrum of white, blue, and UV
  • A natural look that benefits both corals and fish
  • The only one of the three Edge spectra that includes white LEDs
Reefer 14K Edge bar LED cluster, showing the repeating arrangement of royal blue, violet 420, neutral white and indigo 440 LEDs across two channels.
Reefer 14K cluster

Choose this if you want a natural look carried out to the front and back of the tank.

Also worth a look: Royal Ice or UV/Blue Hybrid, if you want more color out at the edges.

Royal Ice

Royal blue and cool blue
  • A blend of royal blue and cool blue
  • Tuned for maximum fluorescence and color pop
  • No white LEDs, so it adds nothing white to whatever the Meridian is doing
Royal Ice Edge bar LED cluster, showing the repeating arrangement of royal blue and cool blue LEDs across two channels.
Royal Ice cluster

Choose this if fluorescence and color pop are what you are after.

Also worth a look: Reefer 14K, if you would rather keep a natural look at the edges.

UV/Blue Hybrid

Royal blue, near-UV, violet, and indigo
  • A mix of royal blue, near-UV, violet, and indigo
  • Chosen to enhance coral coloration and stimulate growth
  • Extends the violet end of the spectrum out to the front and back of the tank
  • Balances against the extra white LEDs in the Shallow Reef layout
UV Blue Hybrid Edge bar LED cluster, showing the repeating arrangement of royal blue, near-UV, violet and indigo LEDs across two channels.
UV/Blue Hybrid cluster

Choose this if coloration and growth lead your priorities.

Also worth a look: Reefer 14K, if you want a more natural look at the edges.

The two choices work together. The Meridian sets the base look of the tank and the Edge bars decide what happens at the front and back of it. Pick bars that reinforce the layout you chose, or bars that lean the other way to balance it. Every channel is adjustable in the app either way.

The system

Power, mounting, optics, and control

One supply, one outlet

This assembly draws 540W at full output and ships with a 600W supply sized for exactly that, so the Meridian and both Edge bars run from one outlet with the daisy chain hardware already in the box.

Multiple mounting options

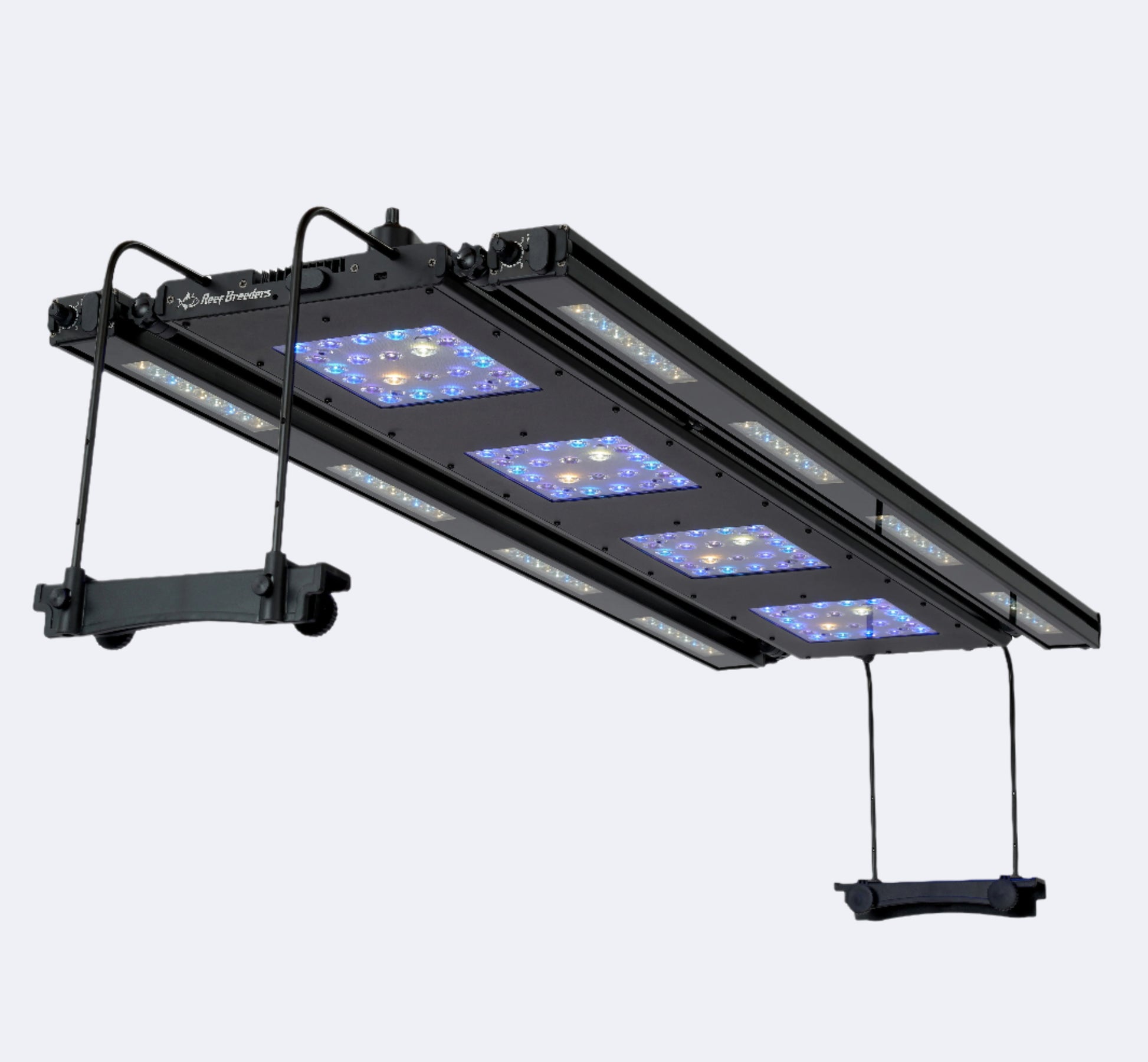

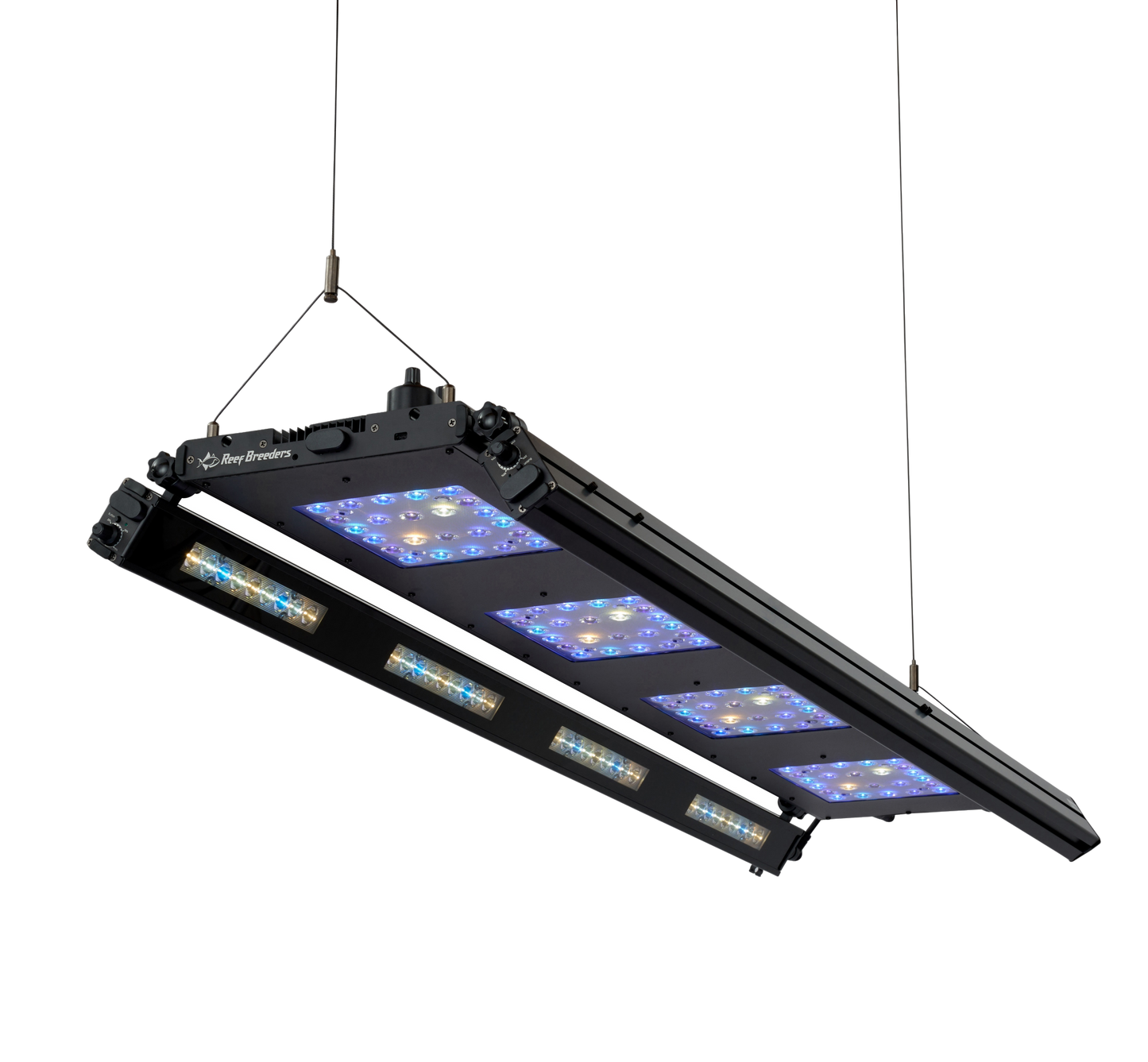

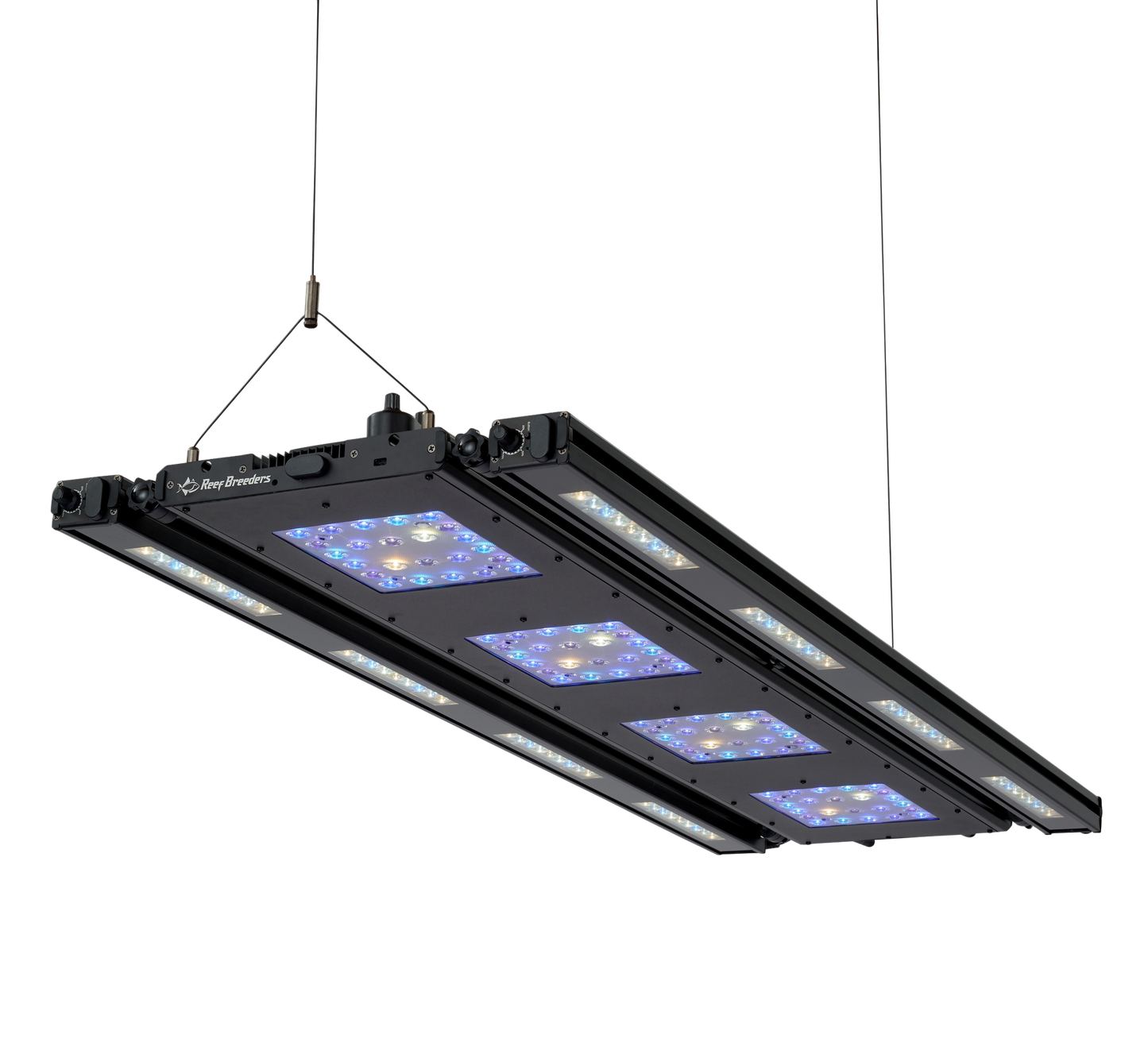

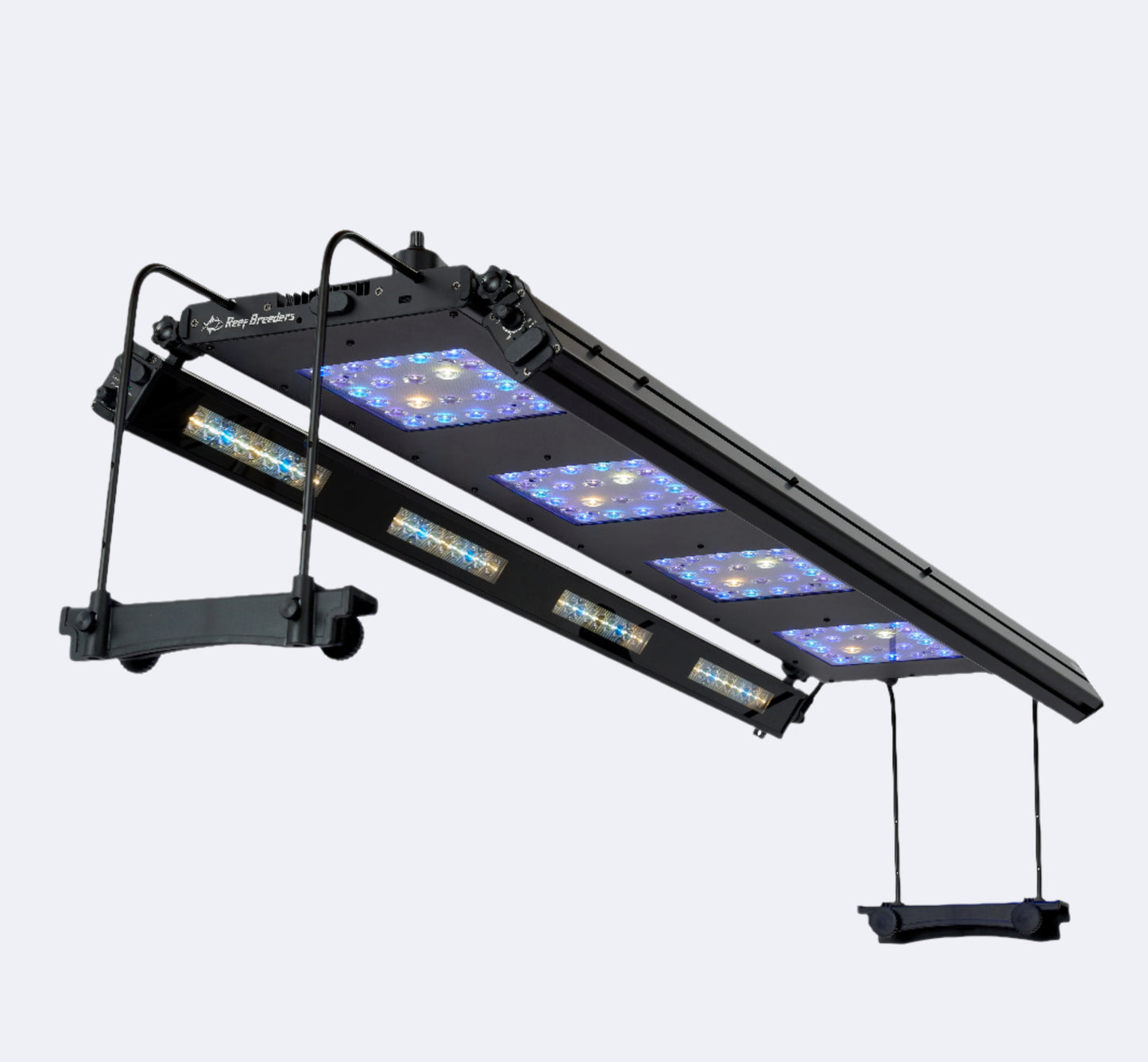

Suspend it, mount to the back or sides of the tank, or slide it into a T-track. The Integrated Connection System links fixtures end to end, and the Edge Articulating Mounts angle each bar in toward the rock or out toward the glass.

Interchangeable optics

The Ocular Holo Matrix system lets you swap the spread rather than work around a fixed lens. The Meridian ships with OHM Balance at 90° and the Edge bars with Edge OHM Focus at 45°, which puts the wide spread overhead and the tighter, deeper beam out at the edges. OHM Optics are available separately in different spreads for both the Meridian and Edge.

WiFi, Bluetooth, and manual control

The Meridian and both Edge bars run on the ReefBreeders app for schedules, spectrum, and sunrise and sunset ramps. Connect over 2.4GHz WiFi for cloud access from anywhere, or over Bluetooth straight from your phone at the tank. They are separate modes, so you choose one at setup and resetting the light switches between them. Every Edge bar has a manual controller built in, and the Meridian takes an optional plug-in controller through the port on top of the case.

Measurements

Specifications

Assembled dimensions

Total assembly weight20.55 lb / 9.3 kg
Length, case only44.4 in / 112.8 cm
Length, including plug and antenna cover46.4 in / 117.9 cm
Total width, Edge bars level15 in / 38 cm
Total width, Edge bars fully tilted13.25 in / 33.7 cm
Recommended mounting heightAbove waterline10–14 in / 25–35 cm

Coverage area · with included optics

SPS dominant48 × 26 in / 122 × 66 cm
Mixed reef with SPS60 × 30 in / 152 × 76 cm
Soft corals and LPS60 × 36 in / 152 × 91 cm
Added coverage per Edge barup to 6 in / 15 cm

Power

Max draw, full assemblyMeridian 300W plus two Edge bars at 120W each540 W
Included power supply600 W
Ports1 in, 1 out
Wireless controlSeparate modes, selected at setup2.4GHz WiFi or Bluetooth
AC power cord6 ft / 1.8 m
DC cable, power supply to light9.5 ft / 2.9 m
Daisy chain cablesCut to reach the Edge bars in position, very little slackFixed length

Individual components

  Meridian 45 Edge 45 (each)
Case L × W × H (in) 44.4 × 8.5 × 1.15 44.375 × 2 × 1.35
Case L × W × H (cm) 112.8 × 21.6 × 2.9 112.7 × 5 × 3.4
Overall length incl. plug 46.4 in / 117.9 cm 46.625 in / 118.4 cm
Height incl. bolts and fan cover 1.4 in / 3.6 cm 1.53 in / 3.9 cm
Weight 11 lb / 5.0 kg 4.4 lb / 2 kg
Max power draw 300 W 120 W
Mounting bolts M6 × 1.0mm M6 × 1.0mm
Optics included OHM Balance, 90° Edge OHM Focus, 45°
App control Yes Yes
Manual controller Optional add-on Built in

Warranty

Lights2 years
Power supply1 year

Mounting hardware sold separately. Side legs, back of tank mounts, and hanging wire kits are not included in this bundle. The Meridian has front and rear tracks for the Edge bars and a top port for the optional Manual Controller. The daisy chain cables are cut to exact length, so plan for the Edge bars to sit in their mounted positions on the Meridian rather than further out.

Built for the long term

The Meridian was designed around a commitment to parts availability and ongoing support, not a two-year product cycle. Whether this is a first reef build or a replacement for an aging fixture, it is a system meant to still be running, and still be serviceable, several tanks from now.

  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jeff
Great build quality!

Absolutely love these lights! These are what I’ve been looking for!

S
Scott

Hi Iv just bought the Meridian 45 edge will 4 back brackets be fine for this as Charterhouse aquatics in the uk don’t sell the slid side brackets

ReefBreeders.com

Hi Scott,

Thanks for reaching out! Yes, 4 BOT Mount arms will support a Meridian 45 Edge Bar bundle (Meridian 45 plus 2 Edge bars) without issue. Just a couple of things to keep in mind:

1. Your aquarium glass should be at least 1/2" (roughly 12mm) thick.
2. Space the mounts evenly across the tank for balanced support.

Let me know if you have any other questions, and enjoy the new light!

T
Tanner

What is the color to get for the bars when supplementing the Meridian 45? What will optimize growth and coral coloration (not pop)?

ReefBreeders.com

Hey Tanner,

If your main goal is to increase light spread/power while maintaining the overall look of the Meridian's current light output, then the Reefer 14K is a good pick. The Reefer 14K has a couple of white LEDs in each cluster, so the spectrum is closest to the Meridian's output.

D
Darrell Diehl

What is the nicest looking light combo and will this cover a 60x30x25 tank?

ReefBreeders.com

Hey Darrell,

Yes- this will cover a 60x30x25" tank with SPS.

As far as the best combo- that typically depends on the look you are going for:

1) Reefer 14K: More natural reef look- slightly higher white:blue ratio than the Meridian layout, so gives you room to tone the blues down a little if desired. Basically, this will extend the coverage of your Meridian with a similar look to what's already onboard.

2) UV/Blue Hybrid: This is a mix of Royal Blues and various spectrums of violet and indigo. Great for adding PAR, color pop, and additional light in the 400-440nm range that SPS and LPS thrive on, as well as the visual appeal of blue pop from the 450nm Royal Blues.

3) Royal Ice: Adds loads of blue color pop- 50/50 mix of Royal Blue and Cool Blue. Great if you want a deep blue look.
