Meridian to 2 Edge Bar Daisy Chain Cable
Meridian to 2 Edge Bar Daisy Chain Cable
5.0 / 5.0
(1) 1 total reviews
Couldn't load pickup availability

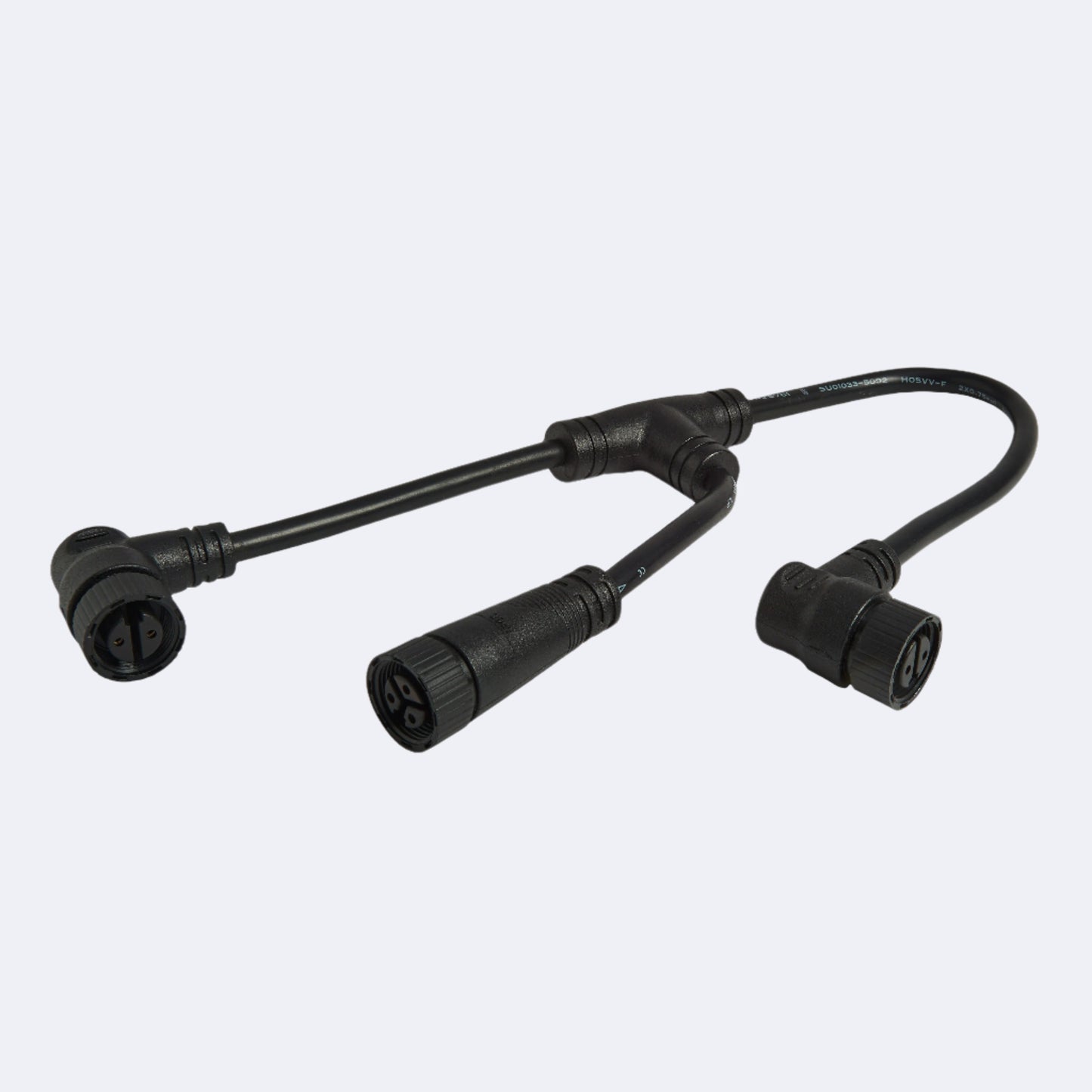

Meridian to Edge Daisy Chain Cable
This cable plugs into the 3 prong Daisy Chain plug on your Meridian, allowing you to daisy chain power to 2 Edge Bars to your Meridian.
Please note that a larger power supply is required to do so.
This cable is designed to link one Meridian to another, and is 24" (60cm) in length, not including the connectors. Please note that a larger power supply is required to link multiple Meridians together.
Daisy Chain Cable Options:
•Daisy Chain Cable 24" (60cm): Connect multiple Meridian lights perpendicular to the front of your aquarium. Example: up to 8 Meridian-11 lights (75 W each) using a 600 W power supply.
•Meridian to 2 Edge Bar Daisy Chain Cable: Connect one Meridian to two Edge bars. This setup cannot include additional Meridians.
•Octo-Cable (4-Way): Connect multiple Edge bars (up to four) to one cable and one power supply, allowing a streamlined single plug connection.
Always verify the total wattage aligns with your selected power supply for optimal performance and safety.
Light |
Max Power Draw |
Power Supply Required |
Parts Required |
Meridian 11 + 2 Edge 12 |
135watts |
150watts |
Daisy Chain Cable for 2 Edge Bars |
Meridian 24 + 2 Edge 24 |
270watts |
300watts |
Daisy Chain Cable for 2 Edge Bars |
Meridian 35 + 2 Edge 35 |
405watts |
450watts |
Daisy Chain Cable for 2 Edge Bars |
Meridian 45 + 2 Edge 45 |
540watts |
600watts |
Daisy Chain Cable for 2 Edge Bars |
Share

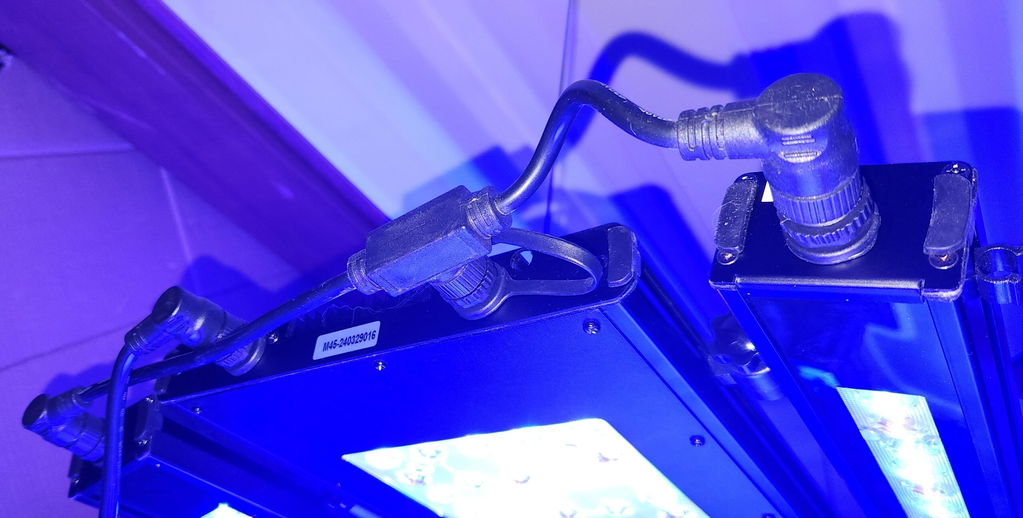

really makes the set up look sleek! Looks great and performs perfectly! These lights are amazing! Love them!
