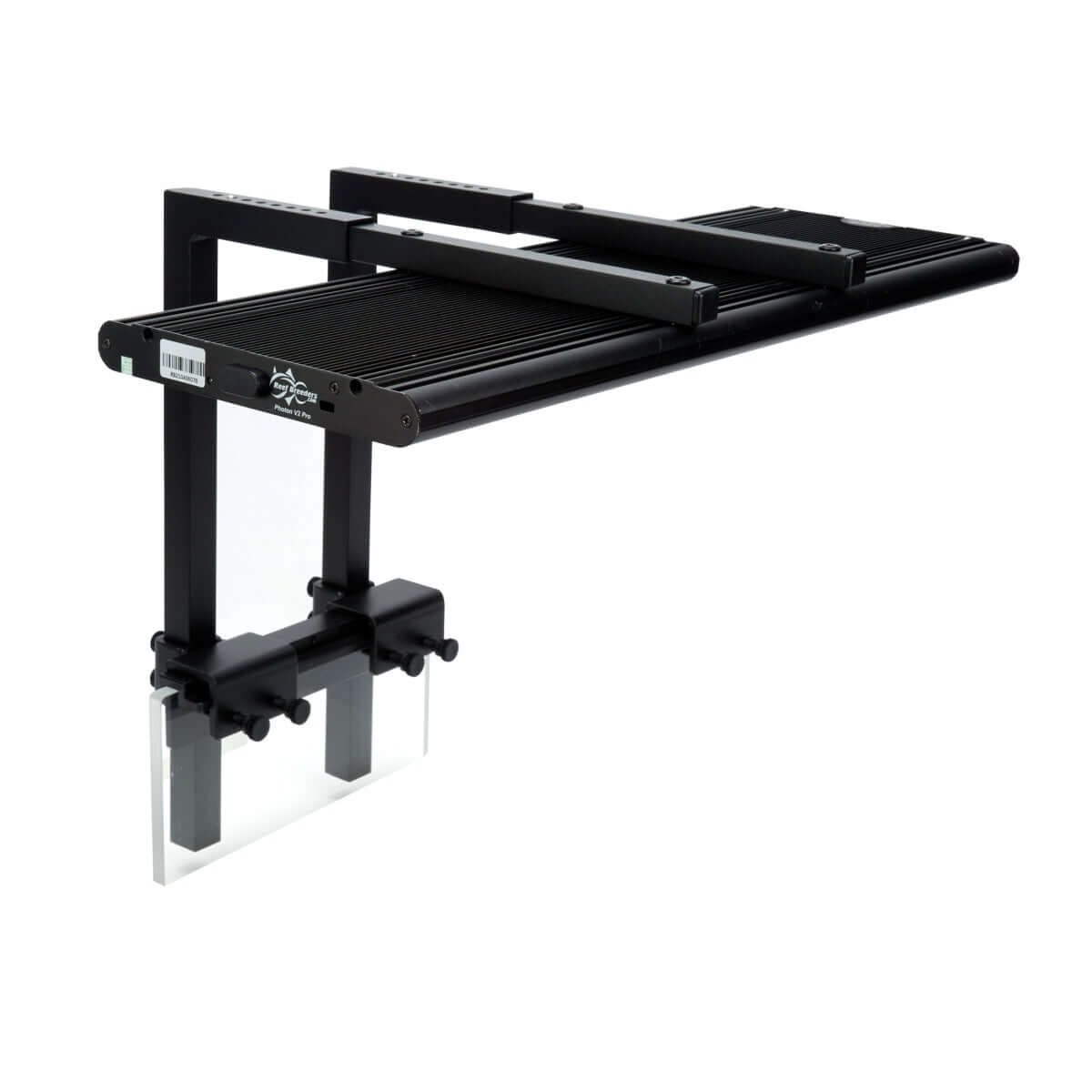

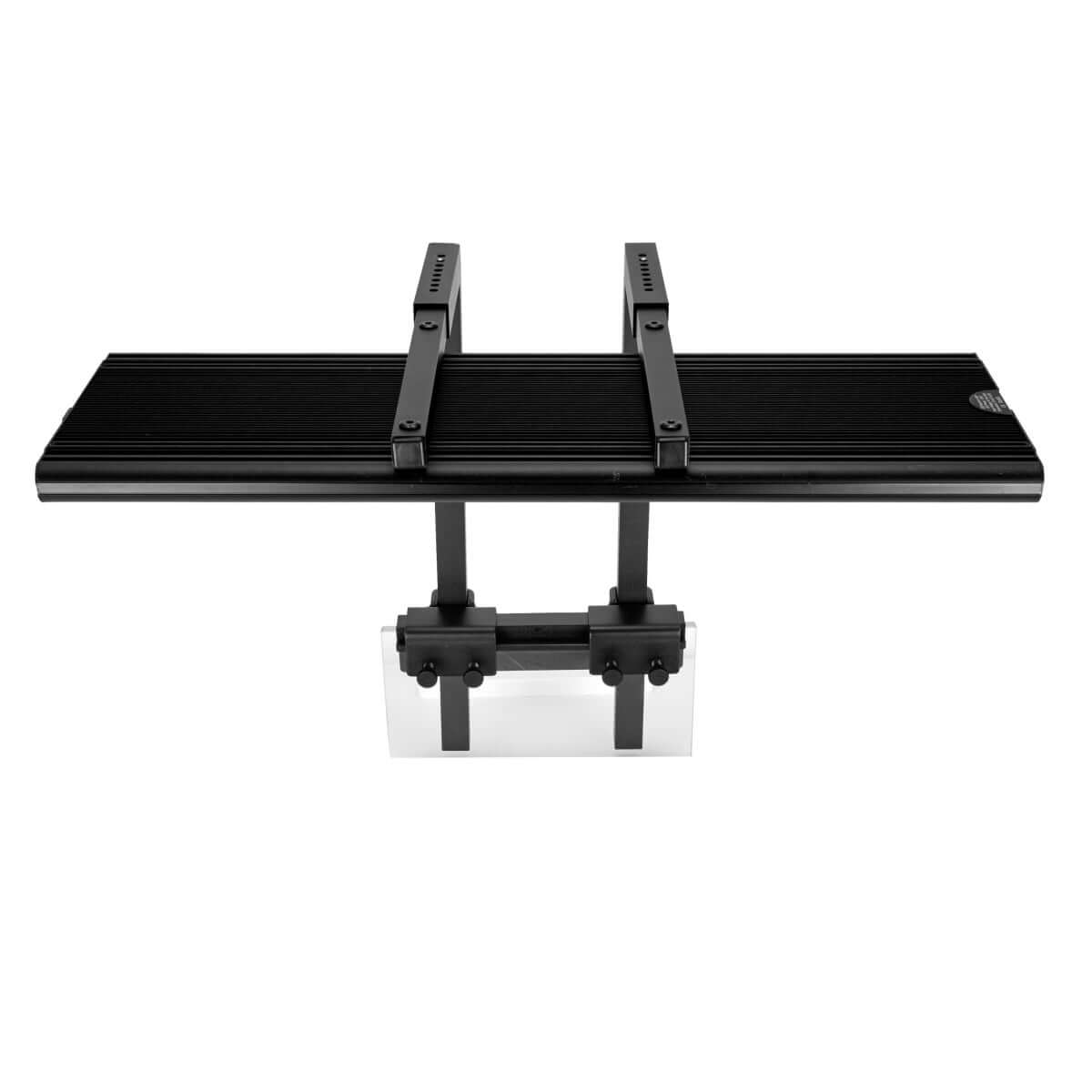

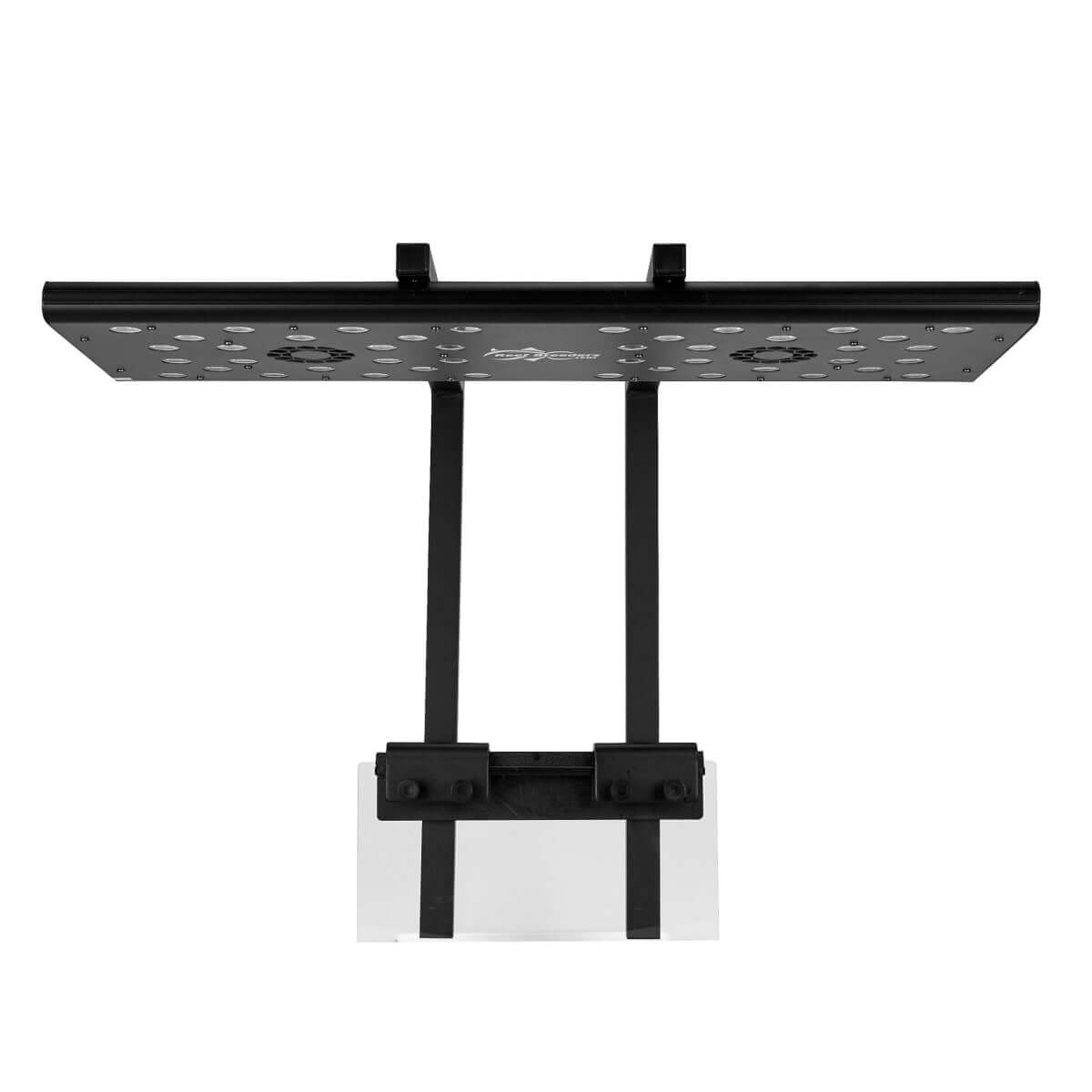

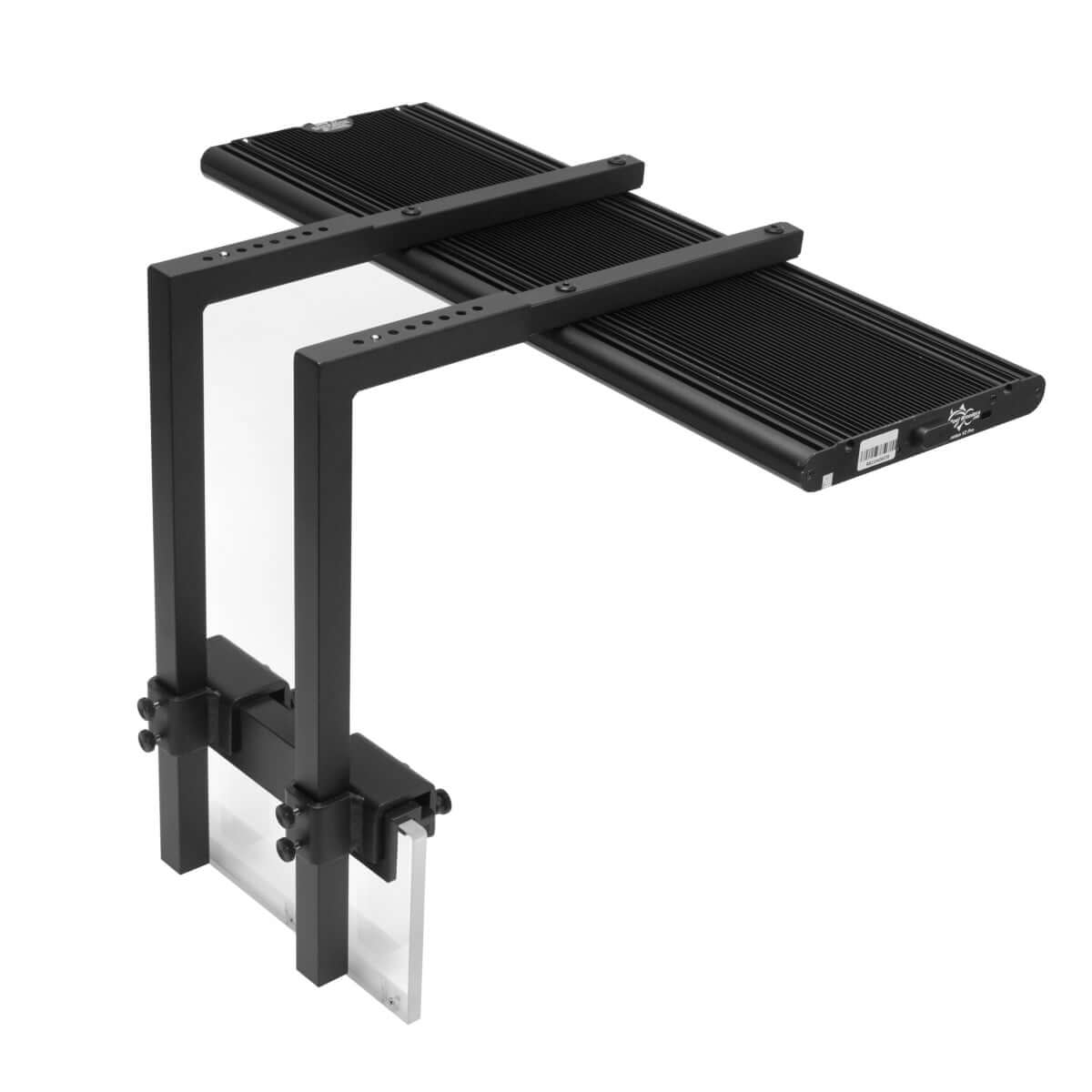

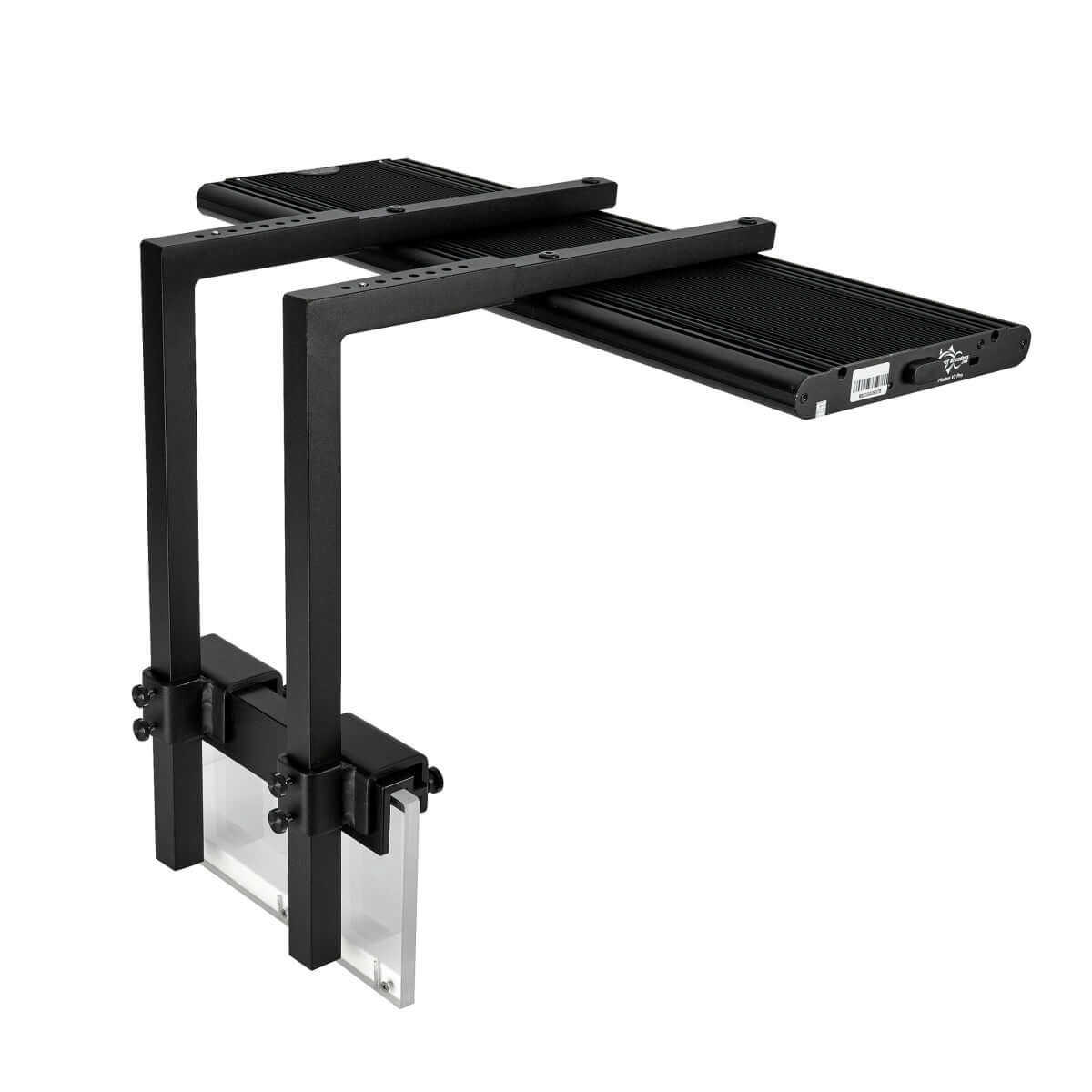

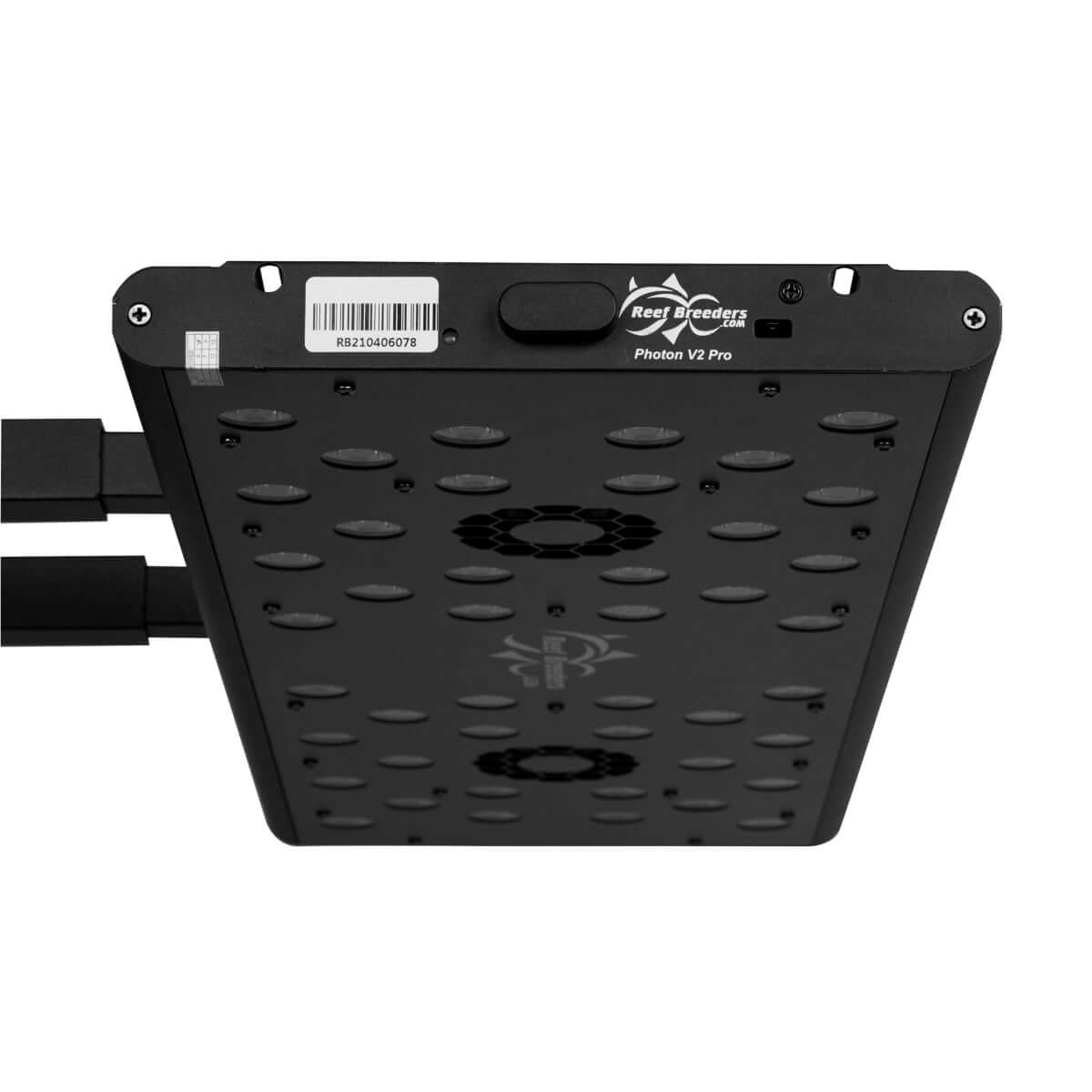

The Photon BOT mount (discontinued) is sold as a set of 2 mounts, which will support all Photon V2, V2+, and V2 Pro sizes. Not compatible with Meridians.

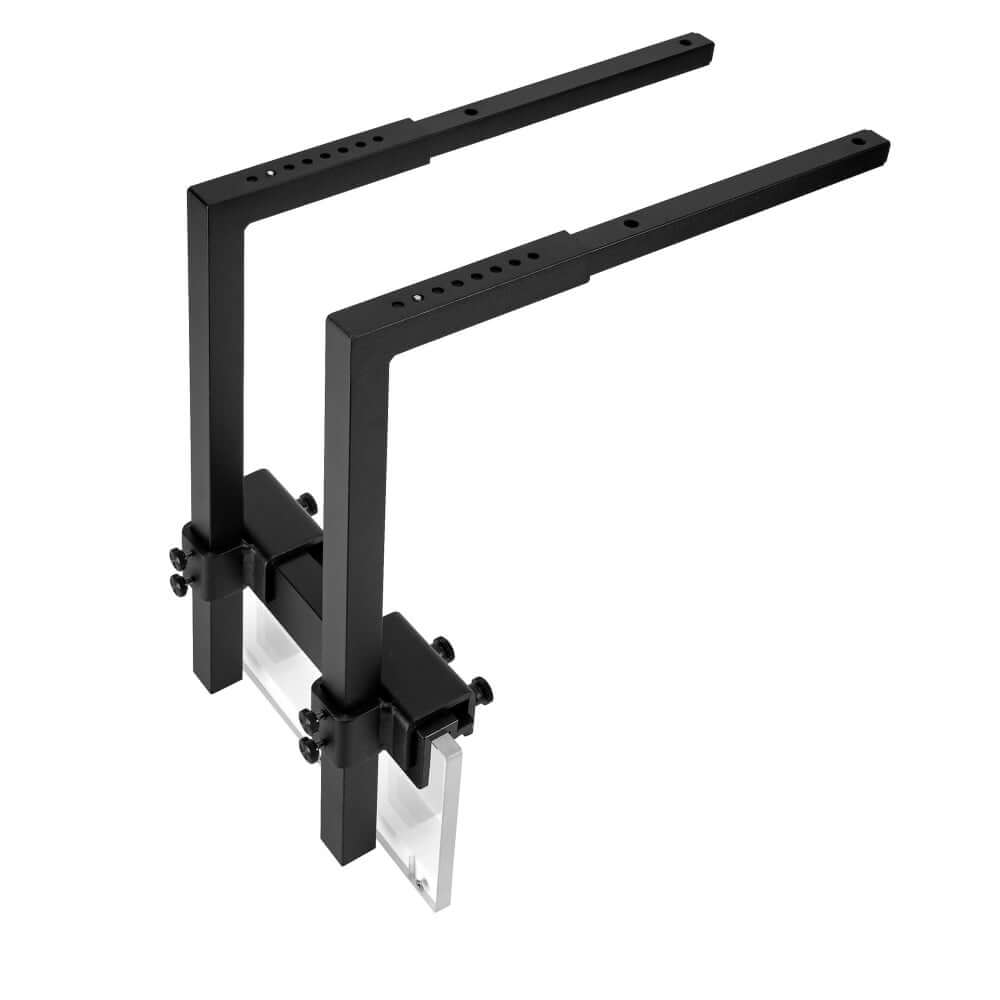

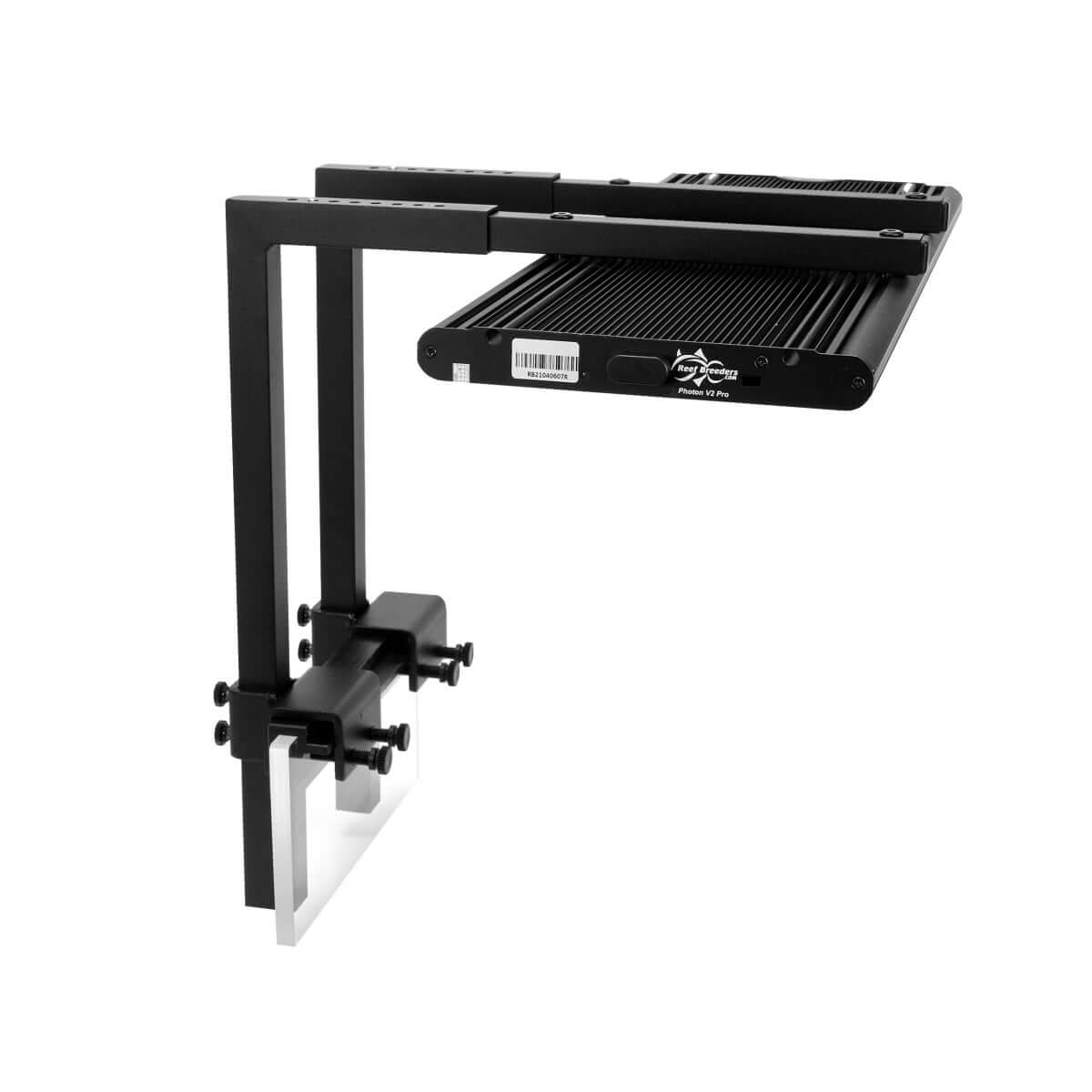

The Photon BOT mount is fully adjustable in 3 dimensions. You can easily position your light from 9 inches to 13 inches on center front to back, and up to 14 inches above the top of your tank. This makes them perfect for tanks 16" to 24" front to back.
Every Photon BOT Mount is compatible with both rimless tanks and all standard tank trims up to 1.5" wide. These are not recommended for glass less than 1/4" in thickness.

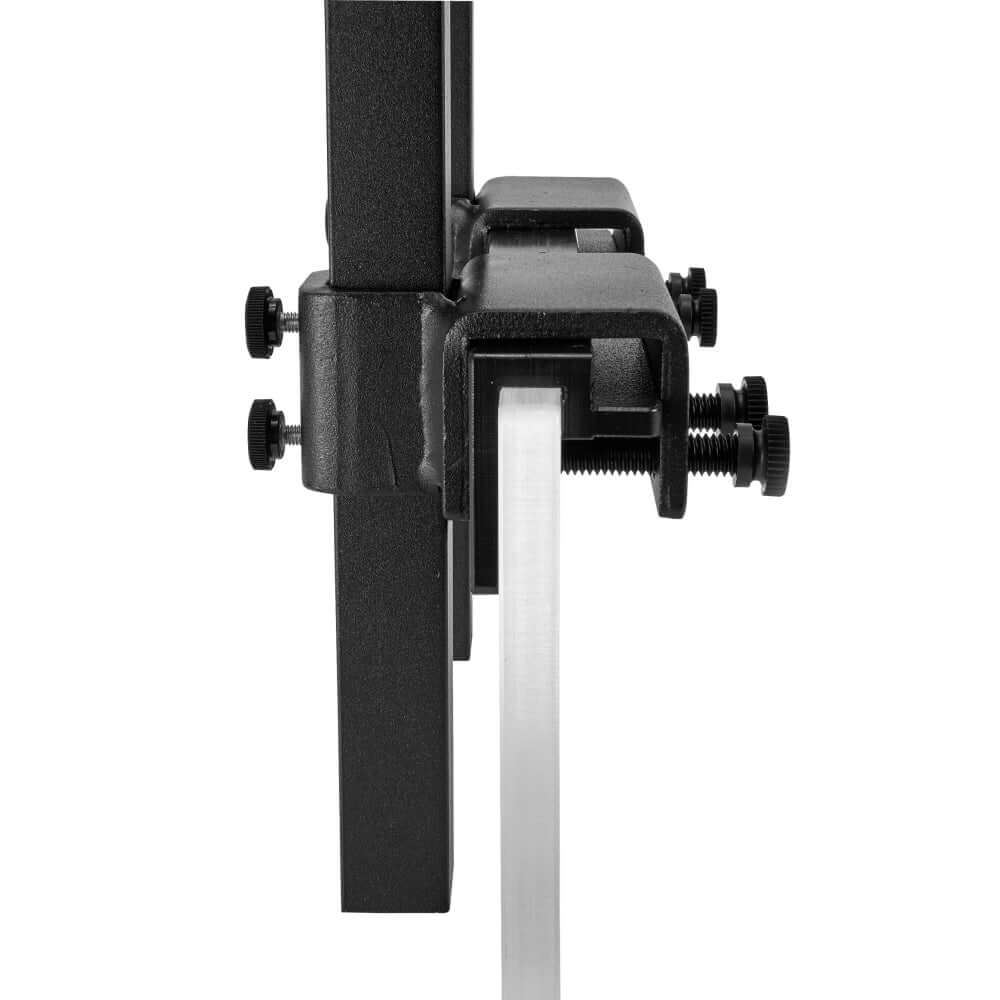

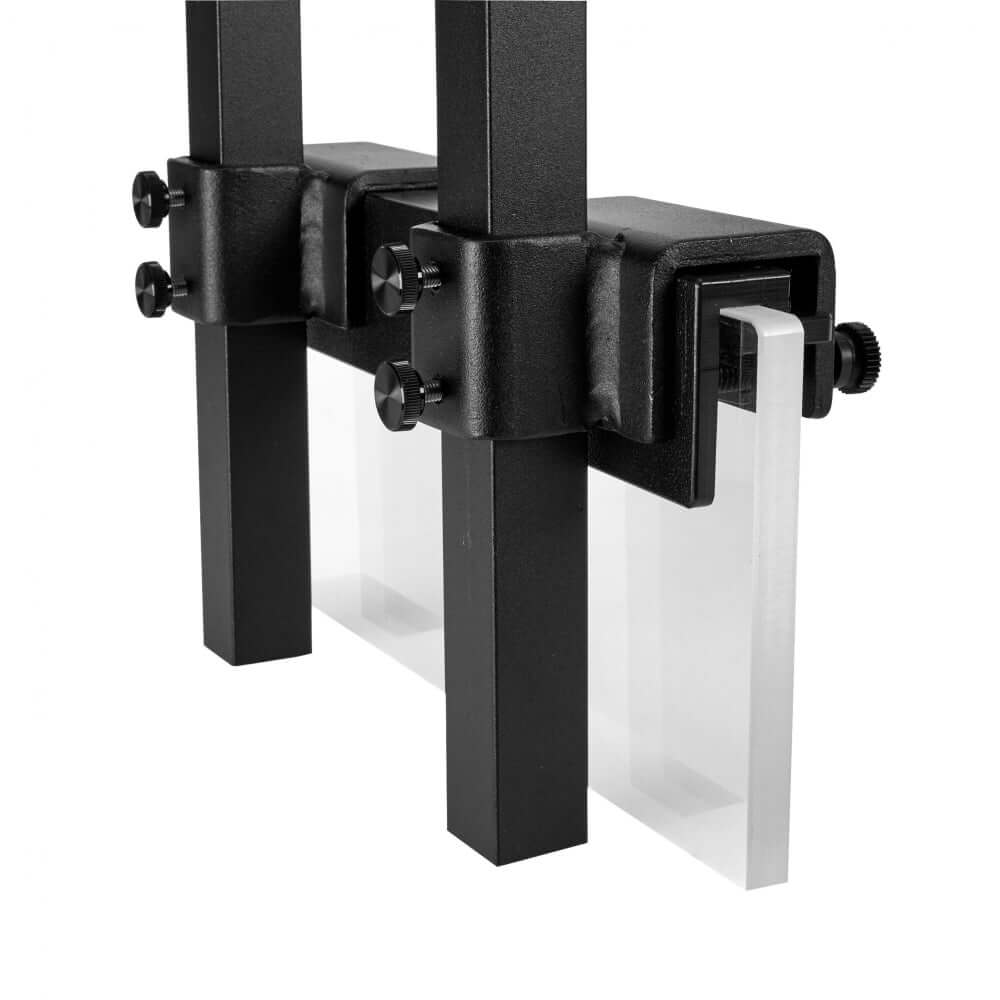

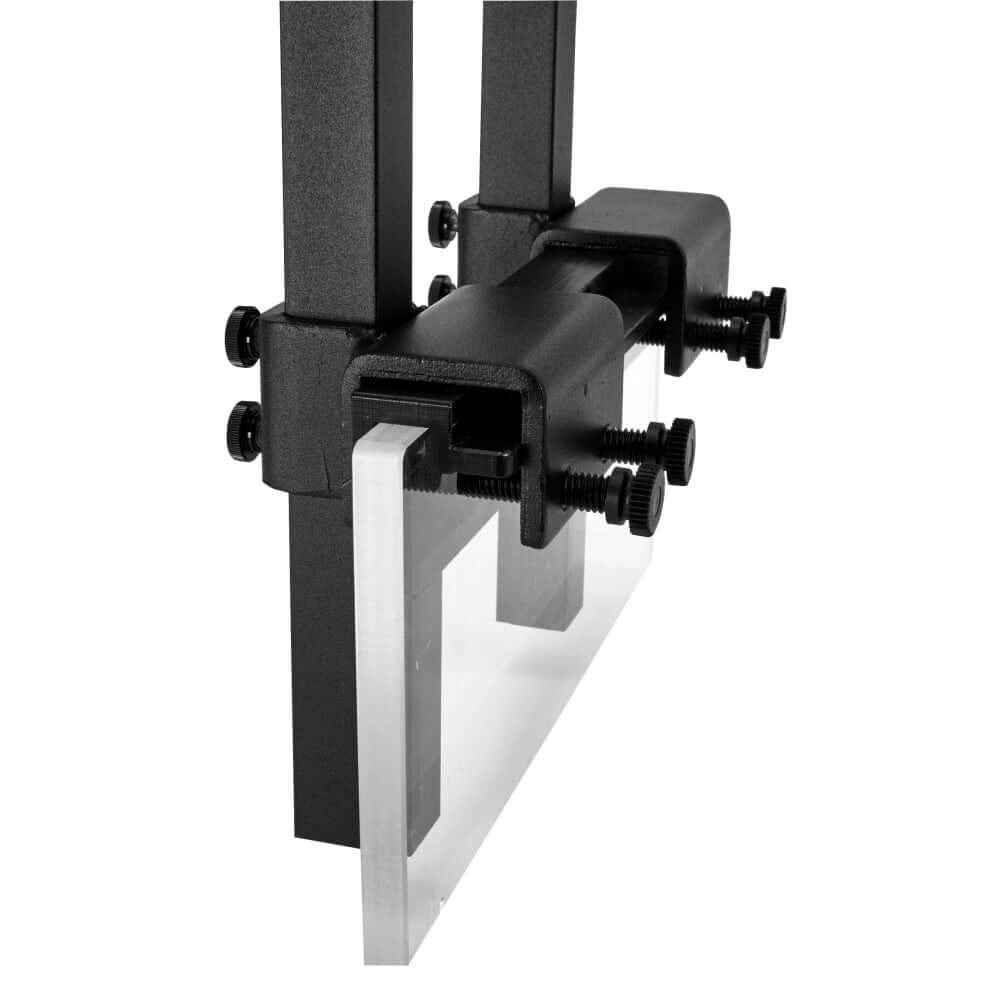

The Clamps Measure 3" (77mm) wide, and protrude 1.72" (44mm) into the tank, minus your glass thickness. For example, with .5" glass, they protrude 1.22". The Bottom of the clamp extends 1.53" (39mm) downwards.

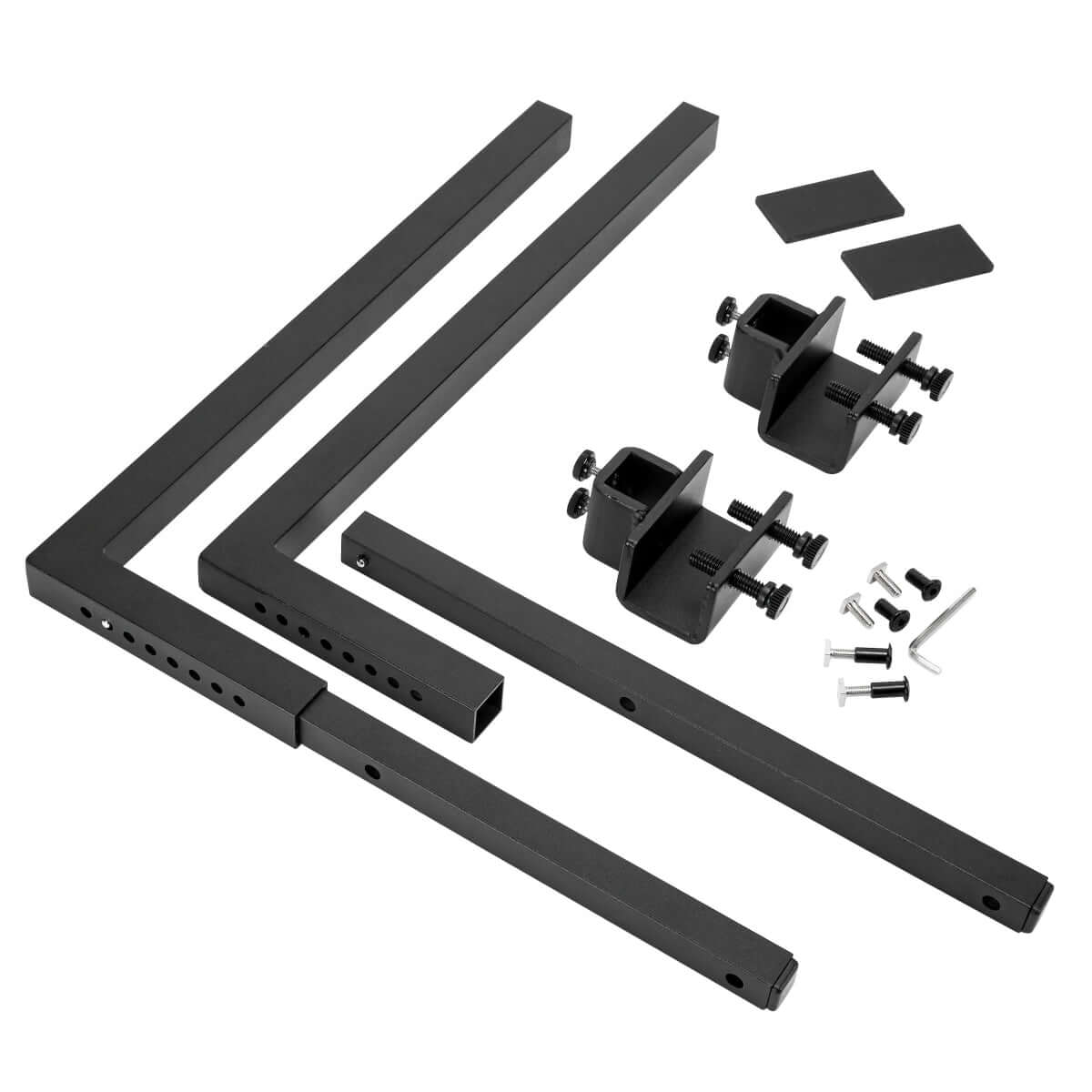

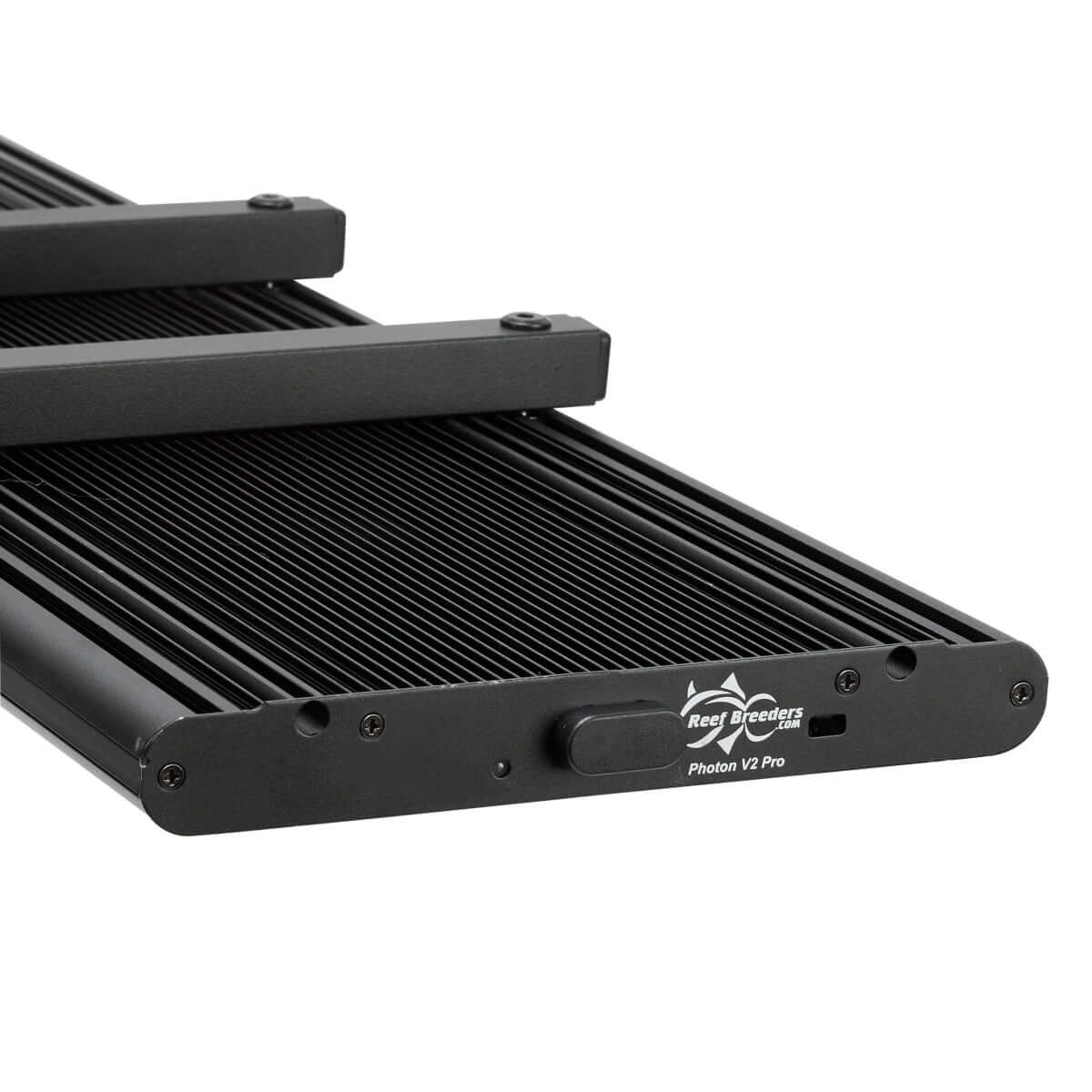

The Photon BOT Mount has few parts and is easy to install. Simply position the mounts on your tank, select your height and center position. Then add the included XL bolts to the T track on top of your Photon. Then put the light into position and secure it with the included cap nuts and hex key.
I purchased this mount for the Photon lights following the ad that announced significant improvements over the original. I replaced it for the original mount I purchased 2 years ago. I haven’t noticed any difference.The product does its job though.
T
Todd Walter
Good product, well designed. Arrived quickly.
J
James Christopher Wensil
BOT Mount V2
This mounting system worked out great for me. I am using it to mount 2 Orphek Natura Icon lights and it is just what I was looking for. Quality construction and easy to work with.
I purchased this mount for the Photon lights following the ad that announced significant improvements over the original. I replaced it for the original mount I purchased 2 years ago. I haven’t noticed any difference.The product does its job though.
T
Todd Walter
Good product, well designed. Arrived quickly.
J
James Christopher Wensil
BOT Mount V2
This mounting system worked out great for me. I am using it to mount 2 Orphek Natura Icon lights and it is just what I was looking for. Quality construction and easy to work with.
H
Heather Malagon
BOT Mount V2
